ABM-IA-M3 - SW5,5 Abstandsbolzen
Merkmale
- 6-kant Abstandsbolzen mit M3 Innen-/Außengewinde
- Schlüsselweite (SW) 5,5
- Außengewinde mit Hinterstich nach DIN 76
(kein Buchstabe "H" in der Art.-Nr. bedeutet "ohne Hinterstich") - Material: Messing vernickelt
- weitere Abmessungen und Größen auf Anfrage

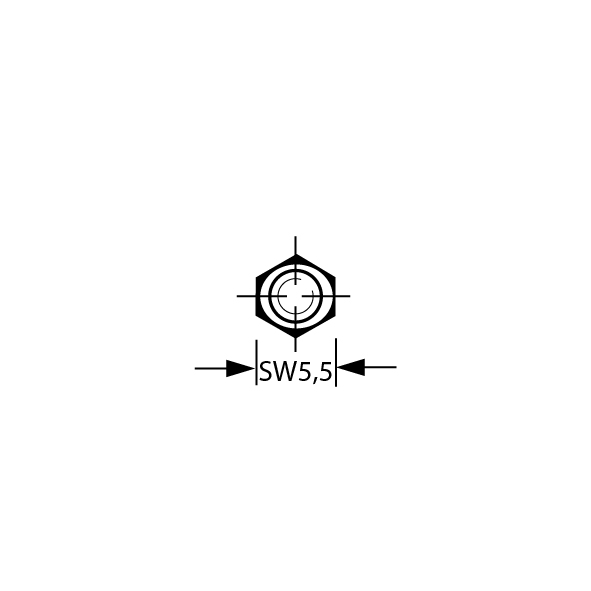

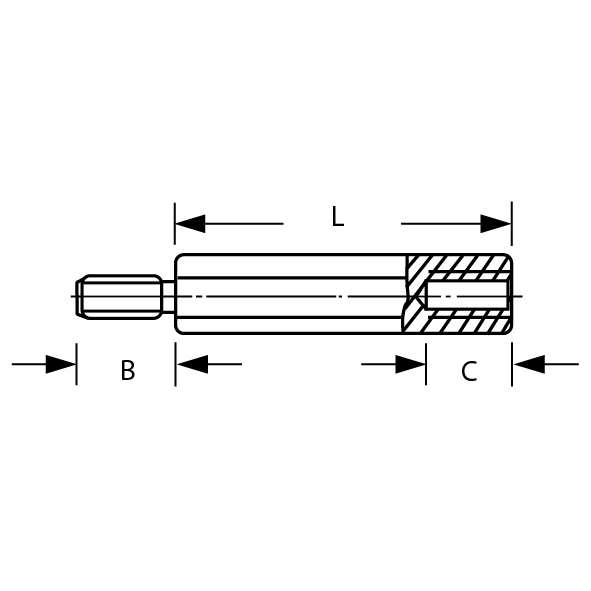

Technische Zeichnungen
Abmessungen in mm
Produktvarianten
Typen, Maße und weitere Daten
| Art.-Nr. | L (mm) | B (mm) | C (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1061305HB5 | 5,0 | 5,0 | 3,0 | Anfrage | |
| 1061305H | 5,0 | 8,0 | 3,0 | Anfrage | |
| 1061305HB6 | 5,0 | 6,0 | 3,0 | Anfrage | |
| 1061306HB6 | 6,0 | 6,0 | 3,0 | Anfrage | |
| 1061306H | 6,0 | 8,0 | 3,0 | Anfrage | |
| 1061307H | 7,0 | 8,0 | 4,0 | Anfrage | |
| 1061308HB6 | 8,0 | 6,0 | 5,0 | Anfrage | |
| 1061308HB7 | 8,0 | 7,0 | 5,0 | Anfrage | |
| 1061308H | 8,0 | 8,0 | 5,0 | Anfrage | |
| 1061308,5HB6 | 8,5 | 6,0 | 5,0 | Anfrage | |
| 1061309HB4 | 9,0 | 4,0 | 5,0 | Anfrage | |
| 1061309H | 9,0 | 8,0 | 6,0 | Anfrage | |
| 1061310HB6 | 10,0 | 6,0 | 6,0 | Anfrage | |
| 1061310H | 10,0 | 8,0 | 6,0 | Anfrage | |
| 1061311HB6 | 11,0 | 6,0 | 6,0 | Anfrage | |
| 1061311H | 11,0 | 8,0 | 6,0 | Anfrage | |
| 1061312HB4 | 12,0 | 4,0 | 6,0 | Anfrage | |
| 1061312HB6 | 12,0 | 6,0 | 6,0 | Anfrage | |
| 1061312H | 12,0 | 8,0 | 6,0 | Anfrage | |
| 1061313H | 13,0 | 8,0 | 6,0 | Anfrage | |
| 1061313,5HB4 | 13,5 | 4,0 | 6,0 | Anfrage | |
| 1061314HB4 | 14,0 | 4,0 | 6,0 | Anfrage | |
| 1061314HB6 | 14,0 | 6,0 | 6,0 | Anfrage | |
| 1061314H | 14,0 | 8,0 | 6,0 | Anfrage | |
| 1061315HB6 | 15,0 | 6,0 | 6,0 | Anfrage | |
| 1061315H | 15,0 | 8,0 | 6,0 | Anfrage | |
| 1061316HB6 | 16,0 | 6,0 | 7,0 | Anfrage | |
| 1061317H | 17,0 | 8,0 | 6,0 | Anfrage | |
| 1061318HB6 | 18,0 | 6,0 | 6,0 | Anfrage | |
| 1061318H | 18,0 | 8,0 | 6,0 | Anfrage | |
| 1061319H | 19,0 | 8,0 | 6,0 | Anfrage | |
| 1061320H | 20,0 | 8,0 | 6,0 | Anfrage | |
| 1061321H | 21,0 | 8,0 | 6,0 | Anfrage | |
| 1061322H | 22,0 | 8,0 | 6,0 | Anfrage | |
| 1061324H | 24,0 | 8,0 | 6,0 | Anfrage | |
| 1061325HB6 | 25,0 | 6,0 | 6,0 | Anfrage | |
| 1061325H | 25,0 | 8,0 | 6,0 | Anfrage | |
| 1061328H | 28,0 | 8,0 | 6,0 | Anfrage | |
| 1061329H | 29,0 | 6,0 | 6,0 | Anfrage | |
| 1061330H | 30,0 | 6,0 | 6,0 | Anfrage | |
| 1061330HB8 | 30,0 | 8,0 | 6,0 | Anfrage | |
| 1061335H | 35,0 | 6,0 | 6,0 | Anfrage | |
| 1061340H | 40,0 | 6,0 | 6,0 | Anfrage | |
| 1061340HB8 | 40,0 | 8,0 | 8,0 | Anfrage | |
| 1061344H | 44,0 | 6,0 | 6,0 | Anfrage | |
| 1061345H | 45,0 | 6,0 | 6,0 | Anfrage | |
| 1061350H | 50,0 | 6,0 | 6,0 | Anfrage | |
| 1061355H | 55,0 | 8,0 | 6,0 | Anfrage | |
| 1061360H | 60,0 | 6,0 | 6,0 | Anfrage | |
| 1061365H | 65,0 | 6,0 | 6,0 | Anfrage | |
| 1061375H | 75,0 | 6,0 | 6,0 | Anfrage |
